Product Summary
The ADE-1L is a frequency mixer. It is intended for VHF/UHF.
Parametrics
ADE-1L maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55°C to 100℃; (3)RF Power: 50mW; (4)IF Current: 40mA.
Features
ADE-1L features: (1)low conversion loss, 5.0 dB typ.; (2)excellent L-R isolation, 55 dB typ.; (3)excellent IP3, 15 dBm typ.; (4)low profile package; (5)aqueous washable; (6)protected by US patent 6,133,525.

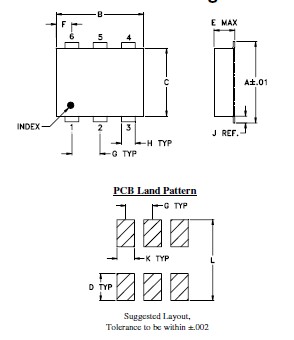

Diagrams
 |
