Product Summary
The LFCN-180 is a low pass filter. The applications of this device include harmonic rejection, VHF/UHF transmitters/receivers and lab use.
Parametrics
LFCN-180 absolute maximum ratings: (1)Operating Temperature: -55 to 100℃; (2)Storage Temperature: -55 to 100℃; (3)RF Power Input: 10W max. at 25℃; (4)DC Current Input to Output: 0.5A max. at 25℃.
Features
LFCN-180 features: (1)excellent power handling, 10W; (2)small size; (3)7 sections; (4)temperature stable; (5)patent pending.

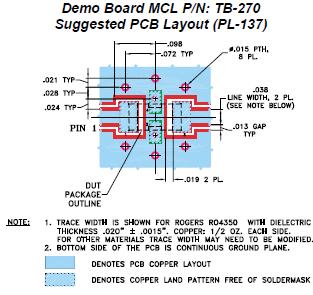

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LFCN-1800D |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
