Product Summary
The ATMEGA162-16AC is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA162-16AC achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA162-16AC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Voltage on any Pin except RESET with respect to Ground: -1.0V to VCC+0.5V; (3)Voltage on RESET with respect to Ground: -1.0V to +13.0V; (4)Maximum Operating Voltage: 6.0V; (5)DC Current per I/O Pin: 40.0 mA; (6)DC Current VCC and GND Pins: 200.0 mA; (7)Operating Temperature: -55℃ to +125℃.
Features
ATMEGA162-16AC features: (1)High-performance, Low-power AVR8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Non-volatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Special Microcontroller Features; (6)I/O and Packages.

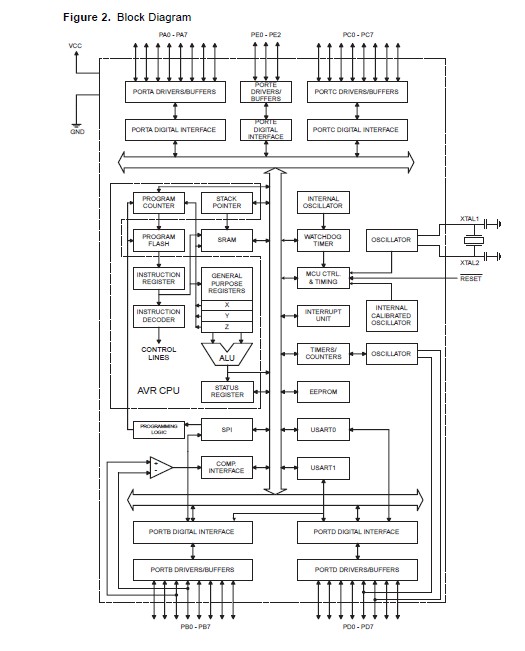

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA162-16AC |
Atmel |
IC MCU AVR 16K 5V 16MHZ 44-TQFP |
Data Sheet |
Negotiable |
|
||||||||||||
