Product Summary

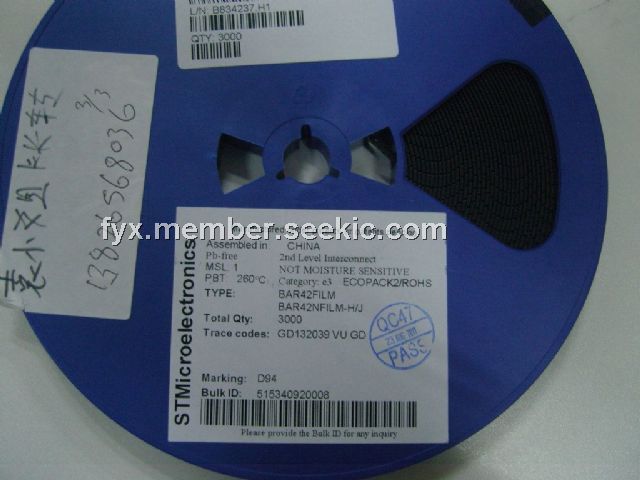

The BAR42FILM is a small signal schottky diode. Genral purpose metal to silicon diodes featuring very low turn-on voltage and fast switching.
Parametrics
BAR42FILM absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 30 V; (2)Continuous forward current, IF(AV): 0.1 A; (3)Surge non repetitive forward current tp = 10ms sinusoidal, IFSM: 0.75 A; (4)Power dissipation (note 1) Tamb = 25℃, Ptot: 250 mW; (5)Maximum storage temperature range, Tstg: -65 to +150℃; (6)Maximum operating junction temperature, Tj: 150℃; (7)Maximum temperature for soldering during 10s, TL: 260℃.
Features
BAR42FILM features: (1)Very small conduction losses; (2)Negligible switching losses; (3)Low forward voltage drop; (4)Surface mount device.
Diagrams
