Product Summary

The ERJ-2RKF2202X is a Precision Thick Film Chip Resistor.

Parametrics

ERJ-2RKF2202X absolute maximum ratings: (1)Power Rating: 0.05W; (2)Limiting Element Voltage: 15V; (3)Maximum Overload Voltage: 30V; (4)Resistance Tolerance: ±0.5%; (5)Resistance Range: 1k to 1MΩ; (6)Category Temperature Range: -55 to 125℃.

Features

ERJ-2RKF2202X features: (1)Small size and lightweight; (2)High reliability; (3)Compatible with placement machines Taping packaging available; (4)Suitable for both reflow and flow soldering; (5)RoHS compliant; (6)Low Resistance Tolerance; (7)Reference Standards.

Diagrams

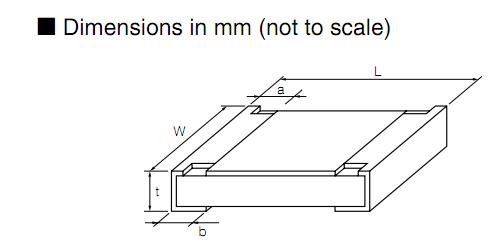

ERJ-2RKF2202X dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

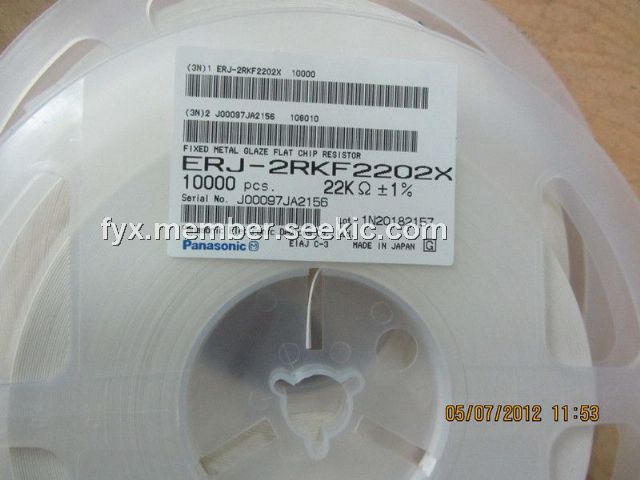

ERJ-2RKF2202X
ERJ-2RKF2202X
Panasonic Electronic Components
Thick Film Resistors - SMD 0402 22Kohms 1% Tol
Data Sheet
0-1: $0.06
1-25: $0.01
25-100: $0.01
100-250: $0.01
