LM1085

TO-263-3, low dropout, positive voltage regulator, Fast Transient Response, 0.04% Line Regulation, Low Dropout Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.55~0.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.55~0.59

PartNumber:: LM1085

Brand:: National Semiconductor - NS | Pack: TO | D/C: 11+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-20

From Other Seller

Part Number:LM1085
US $0.55 - 0.59
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

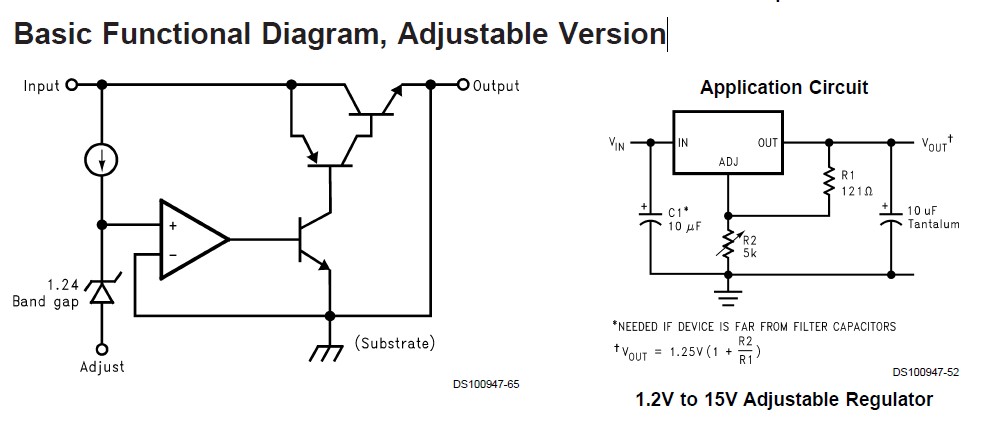

The LM1085 is a low dropout positive voltage regulator with a maximum dropout of 1.5V at 3A of load current. It has the same pin-out as National Semiconductor industry standard LM317. The LM1085 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions integrate the adjust resistors. The LM1085 circuit includes a zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1085 series is available in TO-220 and TO-263 packages. Refer to the LM1084 for the 5A version, and the LM1086 for the 1.5V version.

Parametrics

LM1085 absolute maximum ratings: (1)Junction Temperature (TJ): 150℃; (2)Storage Temperature Range: -65℃ to 150℃; (3)Lead Temperature: 260℃, to 10 sec; (4)ESD Tolerance: 2000V; (5)Maximum Input to Output Voltage Differential: 29V.

Features

LM1085 features: (1)Output Current of 3A; (2)Fast Transient Response; (3)0.04% Line Regulation; (4)0.2% Load Regulation; (5)Internal Thermal and Current Limiting; (6)Adjustable or Fixed Output Voltage(1.5V, 1.8V, 2.5V, 3.3V, 5.0V); (7)Surface Mount Package TO220-3LD & TO-263-3LD; (8)100% Thermal Limit Burn-in; (9)Low Dropout Voltage 1.5V at 3A Output Current; (10)Moisture Sensitivity Level 3.
