Product Summary

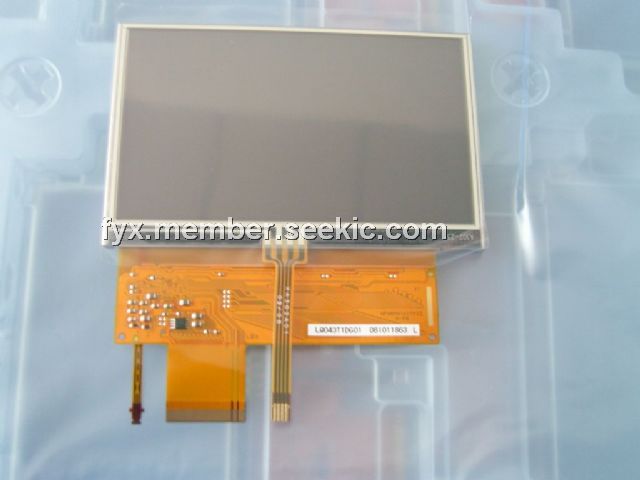

The LQ043T1DG01 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ043T1DG01 is composed of a color TFT-LCD panel, driver ICs, Input FPC, a back light unit and a touch panel. Graphics and texts can be displayed on a 480×3×272 dots panel with about 16million colors by supplying 24bit data signals(8bit×RGB), Four timing signals, logic (typ. +3.3V), analog (typ. +5V) supply voltages for TFT-LCD panel driving and supply voltage for back light.
Parametrics
LQ043T1DG01 absolute maximum ratings: (1)Input voltage: -0.3 to VCC+0.3V; (2)3.3 V Power supply voltage: 0 to +4.5V; (3)5 V Power supply voltage: 0 to +6.0V; (4)Temperature for storage: -30 to +85℃; (5)Temperature for operation: -10 to +70℃; (6)LED Input electric current: 35mA; (7)LED electricity consumption: 123mW.
Features
LQ043T1DG01 features: (1)Input voltage (Low): 0.2V; (2)Input voltage (High): 0.8V; (3)Input current (Low): 4.0μA; (4)Input current (High): 4.0μA; (5)Permissive input ripple voltage: 100mVp-p.
Diagrams
