Product Summary

The LTL-709E is a LED.

Parametrics

LTL-709E absolute maximum ratings: (1)power dissipation: 100mW; (2)peak forward current: 120mA; (3)contimuous forward current: 30mA; (4)derating linear from 50℃: 0.4mA/℃; (5)reverse voltage: 5V; (6)operating temperature range: -55 to 100℃; (7)storage temperature range: -55 to 100℃; (8)lead soldering temperature: 260℃ for 5 seconds.

Features

LTL-709E features: (1)low power consumption; (2)general purpose leads; (3)IC compatible/low current requirements; (4)reliable and rugged.

Diagrams

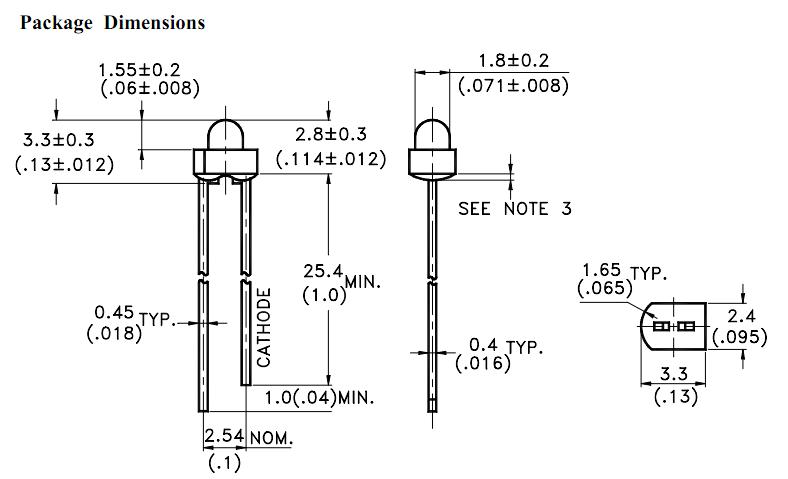

LTL-709E package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LTL-709E
LTL-709E
Lite-On
Standard LED - Through Hole Red Diffused
Data Sheet
0-1: $0.09
1-10: $0.08
10-50: $0.08
50-100: $0.07
