Product Summary
The MAG-TEK21006516 is a Read/Decode Integrated Circuit. The device is intended for use in recovering F/2F encoded data received from a magnetic head.
Parametrics
MAG-TEK21006516 absolute maximum ratings: (1)Supply Voltage: 7.0 Volts; (2)Voltage Input Range: 0 to VCC; (3)Output Sink Current: 10 mA; (4)Internal Power Dissipation: 100 mW; (5)Storage Temperature Range: -55 to 150℃; (6)Lead Soldering (10 Sec.): 260℃.
Features
MAG-TEK21006516 features: (1)150 to more than 12,000 F/2F bits per second; (2)Low power: Full operation from 2.4 to 5.5 volts. Current below 2.0 mA.; (3)Recovers Data with as much as 30% dropout of amplitude; (4)Accepts amplitudes from below 20% of ISO reference voltage to more than 250% of ISO reference voltage; (5)Meets or exceeds the requirement for: IEC 1000-4-2 ESD (Electro Static Discharge); IEC 1000-4-3 Radiated EMC Field (2x requirement); IEC 1000-4-4 Electrical Fast Transient Burst requirement (transmissions on I/O cable).

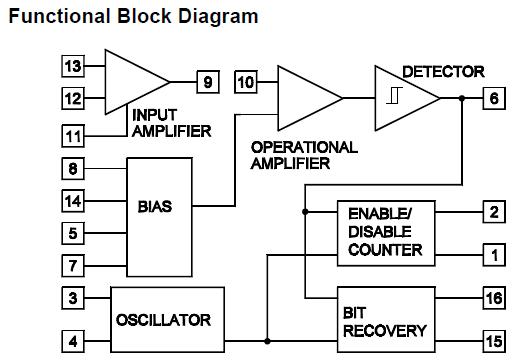

Diagrams
