Product Summary

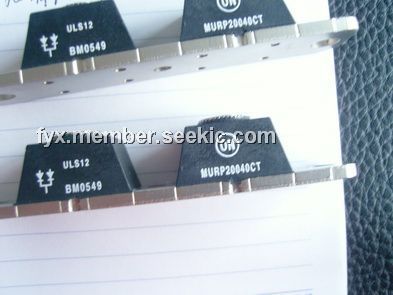

The MURP20040CT is a POWERTAP II Ultrafast SWITCHMODE Power Rectifier. The state of the art POWERTAP II Ultrafast SWITCHMODE power rectifier is designed for use in switching power supplies, inverters, and as free wheeling diodes.
Parametrics
MURP20040CT absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM; (2)Working Peak Reverse Voltage, VRWM; (3)DC Blocking Voltage, VR: 400V; (4)Average Rectified Forward Current, IF(AV): @ TL = 150℃ . Per Device: 200A; @ TL = 125℃ . Per Leg: 100A; (5)Peak Repetitive Surge Current Per Leg (Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFRM: 200 A; (6)Nonrepetitive Peak Surge Current Per Leg (Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM: 800A; (7)Operating Junction Temperature TJ: -55 to +175 ℃; (8)Storage Temperature Tstg: -55 to +150 ℃.
Features
MURP20040CT features: (1)Dual Diode Construction; (2)Low Leakage Current; (3)Low Forward Voltage; (4)175℃ Operating Junction Temperature; (5)Labor Saving POWERTAP Package; (6)Pb-Free Packages are Available.

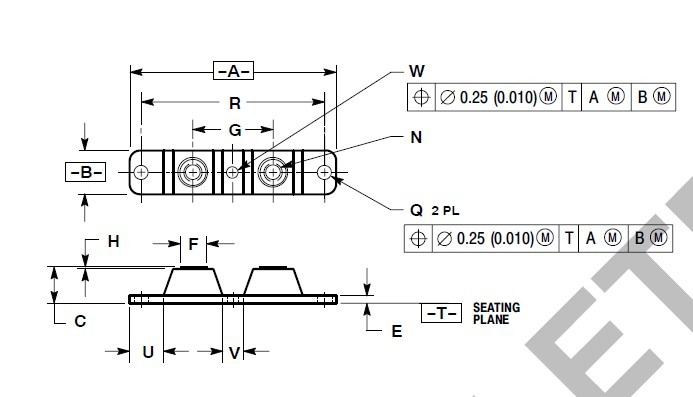

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MURP20040CT |
ON Semiconductor |
Rectifiers 400V 200A Ultrafast |
Data Sheet |
Negotiable |
|
||||
|
MURP20040CTG |
ON Semiconductor |
Rectifiers 400V 200A Ultrafast |
Data Sheet |
Negotiable |
|
||||
