Product Summary

The 16-02-1110 is a 5.00mm Pitch Appli-Mate RAST 5 IDT Connector.

Parametrics

16-02-1110 absolute maximum ratings: (1)Current - Maximum per Contact: 16A; (2)Voltage - Maximum: 250V AC; (3)Temperature Range - Operating: -20℃ to +120℃.

Features

16-02-1110 features: (1)Material - Metal: Phosphor Bronze; (2)Material - Plating Mating: Silver; (3)Material - Plating Termination: Silver; (4)Material - Resin: Nylon; (5)Net Weight: 6.026/g; (6)Number of Rows: 1; (7)Packaging Type: Tray; (8)Panel Mount: No; (9)Pitch - Mating Interface: 5.00mm; (10)Pitch - Termination Interface: 5.00mm; (11)Plating min - Mating: 2.032μm; (12)Plating min - Termination: 0.102μm.

Diagrams

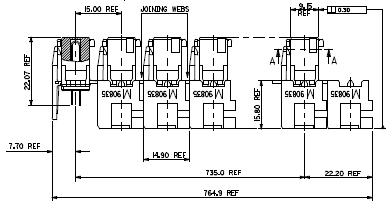

16-02-1110 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
16-02-1110
16-02-1110
Molex
Headers & Wire Housings FEMALE HIGH FORCE 20000
Data Sheet
0-20000: $0.04
20000-40000: $0.03
