Product Summary

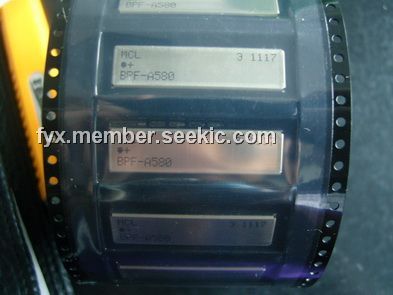

The BPF-A580+ is a Bandpass Filter. The applications of the BPF-A580+ include Military Radio, Harmonic Rejection, Transmitters / Receivers.

Parametrics

BPF-A580+ absolute maximum ratings: (1)Operating Temperature: -40℃ to 85℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input: 0.5W at 25℃.

Features

BPF-A580+ features: (1)Linear Phase, up to ? deg Typ @ Fc±60 MHz; (2)High Rejection; (3)Shielded case; (4)Aqueous washable.

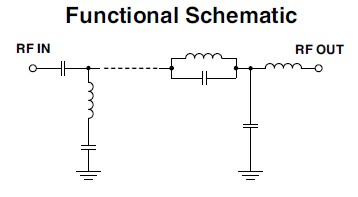

Diagrams
