Product Summary
The BPF-C45+ is a Bandpass Filter. The applications of the BPF-C45+ include military commounications, receiver/transmitters, harmonic rejection.
Parametrics
BPF-C45+ absolute maximum ratings: (1)Operating Temperature: -40 to 85℃; (2)Storage Temperature: -55 to 100℃; (3)RF Power Input: 0.5 W max.
Features
BPF-C45+ features: (1)high rejection; (2)good VSWR, 1.2:1 typ @ passband; (3)shielded case; (4)aqueous washable.

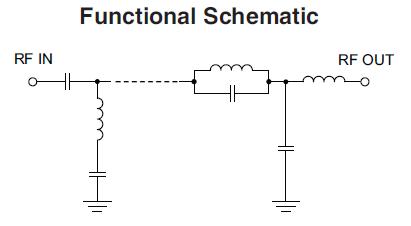

Diagrams
![]() |
