Product Summary

The DTC115EE is a Digital transistor (built-in resistor).

Parametrics

DTC115EE absolute maximum ratings: (1)Supply voltage: 50 V; (2)Input voltage: -10 to +40 V; (3)Output current: 20 mA; (4)Power dissipation: 150 mW; (5)Junction temperature: 150 ℃; (6)Storage temperature: -55 to +150 ℃.

Features

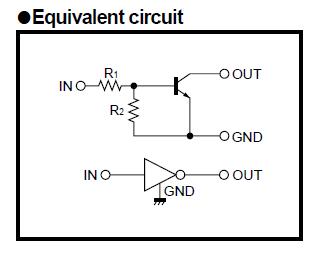

DTC115EE features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see the equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete; (3)isolation to allow negative biasing of the input, and parasitic; (4)effects are almost completely eliminated; (5)Only the on/off conditions need to be set for operation, making; (6)device design easy; (7)Higher mounting densities can be achieved.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DTC115EE
DTC115EE
Other

Data Sheet
Negotiable
DTC115EET1
DTC115EET1
ON Semiconductor
Transistors Switching (Resistor Biased) 100mA 50V BRT NPN
Data Sheet
Negotiable
DTC115EET1G
DTC115EET1G
ON Semiconductor
Transistors Switching (Resistor Biased) 100mA 50V BRT NPN
Data Sheet
0-1: $0.11
1-25: $0.09
25-100: $0.07
100-500: $0.03
DTC115EETL
DTC115EETL
ROHM Semiconductor
Transistors Switching (Resistor Biased) NPN 50V 20MA
Data Sheet
0-1: $0.26
1-10: $0.15
10-100: $0.10
100-500: $0.06
