Product Summary

The GVA-82+ (RoHS compliant) is a wideband amplifier offering high dynamic range. Lead finish is SnAgNi. It has repeatable performance from lot to lot and is enclosed in a SOT-89 package. The GVA-82+ uses patented Transient Protected Darlington configuration and is fabricated using InGaP HBT technology. The applications of the GVA-82+ include Base station infrastructure, Portable Wireless, CATV & DBS, MMDS & Wireless LAN, LTE.

Parametrics

GVA-82+ absolute maximum ratings: (1)Operating Temperature (ground lead): -40℃ to 85℃; (2)Storage Temperature: -65℃ to 150℃; (3)Operating Current at 5V: 160mA; (4)Power Dissipation: 0.84W; (5)Input Power: 20 dBm; (6)DC Voltage on Pin 3: 5.8V.

Features

GVA-82+ features: (1)Gain, 15 dB typ. at 100 MHz; (2)High Pout, P1dB 20 dBm typ.; (3)High IP3, 40 dBm typ. at 100 MHz; (4)Ruggedized design; (5)Fixed 5V operation; (6)Unconditionally stable; (7)Excellent ESD Protection; (8)Transient protected, US patent 6,943,629.

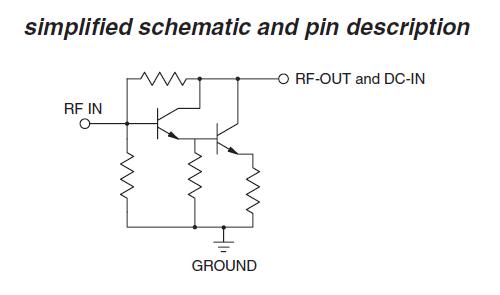

Diagrams
