Product Summary

The PMLL4148L is a Single high-speed switching diode, fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C Surface-Mounted Device (SMD) packages. The applications of PMLL4148L are: High-speed switching, Reverse polarity protection.

Parametrics

PMLL4148L absolute maximum ratings: (1)VRRM repetitive peak reverse voltage: 100 V; (2)VR reverse voltage: 75 V; (3)IF forward current: 200 mA; (4)IFRM repetitive peak forward current: 450 mA; (5)IFSM non-repetitive peak forward current, tp = 1 μs: 4 A; tp = 1 ms, 1 A; tp = 1 s: 0.5 A; (6)Ptot total power dissipation Tamb = 25 ℃: 500 mW; (7)Tj junction temperature: 200 ℃; (8)Tamb ambient temperature: -65 to +200 ℃; (9)Tstg storage temperature: -65 to +200 ℃.

Features

PMLL4148L features: (1)High switching speed: trr ≤ 4 ns; (2)Reverse voltage: VR ≤ 75 V; (3)Repetitive peak reverse voltage: VRRM ≤ 100 V; (4)Repetitive peak forward current: IFRM ≤ 450 mA; (5)Small hermetically sealed glass SMD package.

Diagrams

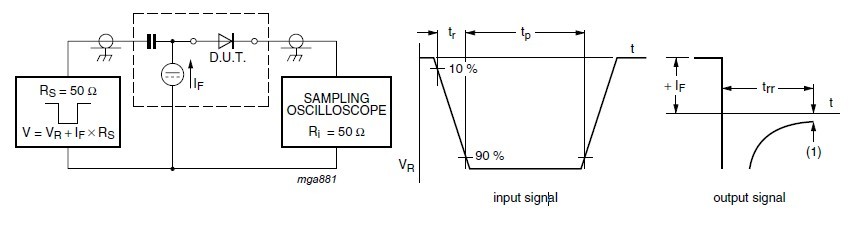

PMLL4148L Reverse recovery time test circuit and waveforms
