Product Summary
The HD74HC32P is a Quad. 2-input OR Gate.
Parametrics
HD74HC32P absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 to 7.0 V; (2)Input / Output voltage, Vin, Vout: –0.5 to VCC +0.5 V; (3)Input / Output diode current, IIK, IOK: ±20 mA; (4)Output current, IO: ±25 mA; (5)VCC, GND current, ICC or IGND: ±50 mA; (6)Power dissipation, PT: 500 mW; (7)Storage temperature, Tstg: –65 to +150℃.
Features
HD74HC32P features: (1)High Speed Operation: tpd = 10 ns typ (CL = 50 pF); (2)High Output Current: Fanout of 10 LSTTL Loads; (3)Wide Operating Voltage: VCC = 2 to 6 V; (4)Low Input Current: 1 μA max; (5)Low Quiescent Supply Current: ICC (static) = 1 μA max (Ta = 25℃) .

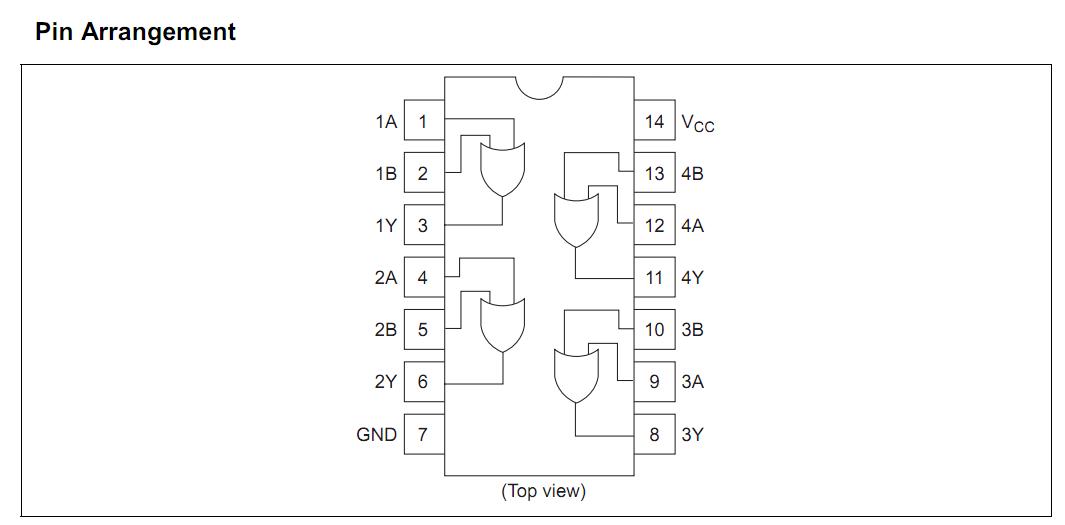

Diagrams
 |
