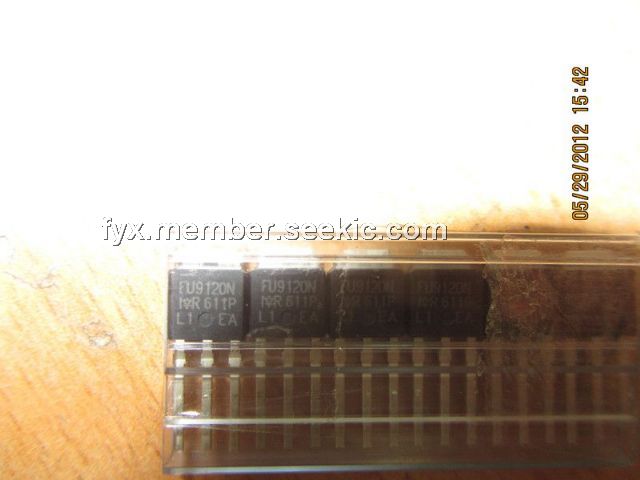

IRFU9120Pb

IRFU9120Pb, Power MOSFET, TO-251, 100V, 22A, Vishay Telefunken

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.30

PartNumber:: IRFU9120Pb

Brand:: Vishay Telefunken - Vishay | Pack: TO | D/C: 11+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:IRFU9120Pb
US $1.00 - 1.30
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRFU9120Pb is a Third generation Power MOSFET from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The IRFU9120Pb is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU/SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surcace mount applications.

Parametrics

IRFU9120Pb absolute maximum ratings: (1)Drain-Source Voltage, VDS: -100V; (2)Gate-Source Voltage, VGS: ±20V; (3)Continuous Drain Current VGS at -10 V, TC = 25℃, ID: -5.6A; TC = 100℃, ID: -3.6 A; (4)Pulsed Drain Currenta, IDM: -22A; (5)Linear Derating Factor: 0.33W/℃; (6)Linear Derating Factor (PCB Mount): 0.020W/℃; (7)Single Pulse Avalanche Energyb, EAS: 210 mJ; (8)Repetitive Avalanche Currenta, IAR: - 5.6 A; (9)Repetitive Avalanche Energya, EAR: 4.2 mJ; (10)Maximum Power Dissipation TC = 25℃, PD: 42 W; (11)Maximum Power Dissipation (PCB Mount) TA = 25℃: 2.5W; (12)Peak Diode Recovery dV/dt, dV/dt: -5.5 V/ns.

Features

IRFU9120Pb features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Surface Mount (IRFR9120/SiHFR9120); (4)Straight Lead (IRFU9120/SiHFU9120); (5)?Available in Tape and Reel; (6)P-Channel; (7)Fast Switching; (8)Lead (Pb)-free Available.
