Product Summary

The LM318N is a precision high speed operational amplifier, designed for applications requiring wide bandwidth and high slew rate. They feature a factor of ten increase in speed over general purpose devices without sacrificing DC performance. The LM318N has internal unity gain frequency compensation. This considerably simplifies its application since no external components are necessary for operation. However, unlike most internally compensated amplifiers, external frequency compensation may be added for optimum performance. For inverting applications, feedforward compensation will boost the slew rate to over 150V/μs and almost double the bandwidth. Overcompensation can be used with the LM318N for greater stability when maximum bandwidth is not needed. Further, a single capacitor can be added to reduce the 0.1% settling time to under 1 μs.

Parametrics

LM318N absolute maximum ratings: (1)Supply Voltage: ±20V; (2)Power Dissipation: 500 mW; (3)Differential Input Current: ±10 mA; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Continuous; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec.), Hermetic Package: 300℃; Plastic Package: 260℃; (9)Dual-In-Line Package Soldering (10 sec.): 260℃; (10)Small Outline Package Vapor Phase (60 sec.): 215℃; (11)Infrared (15 sec.): 220℃; (12)ESD Tolerance: 2000V.

Features

LM318N features: (1)15 MHz small signal bandwidth; (2)Guaranteed 50V/μs slew rate; (3)Maximum bias current of 250 nA; (4)Operates from supplies of ±5V to ±20V; (5)Internal frequency compensation; (6)Input and output overload protected; (7)Pin compatible with general purpose op amps.

Diagrams

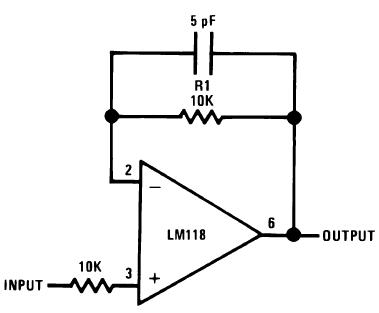

LM318N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM318N/NOPB
LM318N/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1: $0.64
1-25: $0.52
25-100: $0.45
100-250: $0.40
LM318N
LM318N

National Semiconductor (TI)

Operational Amplifiers - Op Amps

Data Sheet

0-1000: $0.34
1000-2520: $0.32
2520-5000: $0.30
5000-10000: $0.29
