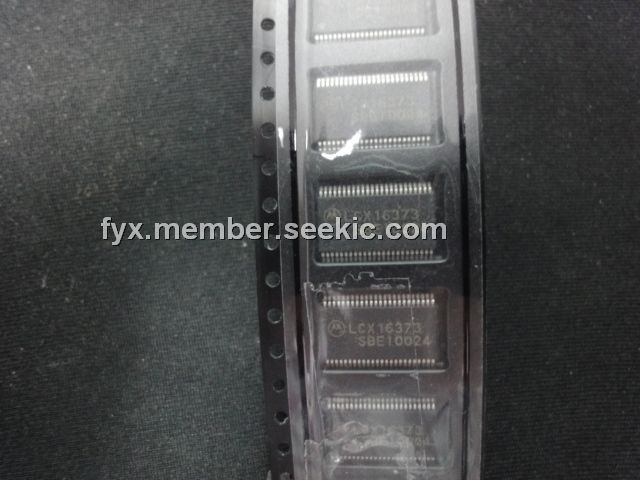

M74LCX16373DTR2G

non-inverting 16-bit transparent latch, 2.3 to 3.6 V, 48-TSSOP, 24 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.31 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.31

PartNumber:: M74LCX16373DTR2G

Brand:: ON Semiconductor - ON | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. helen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:M74LCX16373DTR2G
US $0.30 - 0.31
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The M74LCX16373DTR2G is a high performance, non-inverting 16-bit transparent latch operating from a 2.3 V to 3.6 V supply. The M74LCX16373DTR2G is byte controlled. Each byte has separate Output Enable and Latch Enable inputs. These control pins can be tied together for full 16-bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5 V allows the M74LCX16373DTR2G inputs to be safely driven from 5.0 V devices.

Parametrics

M74LCX16373DTR2G absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage: -0.5 ≤ VI ≤ +7.0 V; (3)VO DC Output Voltage: -0.5 ≤ VO ≤ +7.0 V; (4)IIK DC Input Diode Current: -50 mA; (5)IOK DC Output Diode Current: -50 mA; (6)IO DC Output Source/Sink Current: ±50 mA; (7)ICC DC Supply Current Per Supply Pin: ±100 mA; (8)IGND DC Ground Current Per Ground Pin: ±100 mA; (9)TSTG Storage Temperature Range: -65 to +150 ℃.

Features

M74LCX16373DTR2G features: (1)Designed for 2.3 to 3.6 V VCC Operation; (2)5.4 ns Maximum tpd; (3)5.0 V Tolerant - Interface Capability With 5.0 V TTL Logic; (4)Supports Live Insertion and Withdrawal; (5)IOFF Specification Guarantees High Impedance When VCC = 0 V; (6)LVTTL Compatible; (7)LVCMOS Compatible; (8)24 mA Balanced Output Sink and Source Capability; (9)Near Zero Static Supply Current in All Three Logic States (20 μA)Substantially Reduces System Power Requirements; (10)Latchup Performance Exceeds 500 mA; (11)ESD Performance: Human Body Model >2000 V; Machine Model >200 V; (12)These are Pb-Free Devices.
