Product Summary
The HFCN-2700A+ is a High Pass Filter. The applications of the HFCN-2700A+ include sub-harmonic rejection and dc blocking, transmitters/receivers, lab use.
Parametrics
HFCN-2700A+ absolute maximum ratings: (1)Operating Temperature: -55℃ to 100℃; (2)Storage Temperature: -55℃ to 100℃; (3)RF Power Input*: 7W max. at 25℃.
Features
HFCN-2700A+ features: (1)low cost; (2)small size; (3)7 sections; (4)temperature stable; (5)dc block in/out, breakdown voltage, 1kV typ; (6)excellent power handling, 7W.

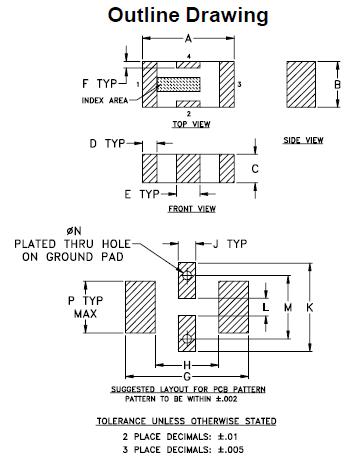

Diagrams
 |
