Product Summary

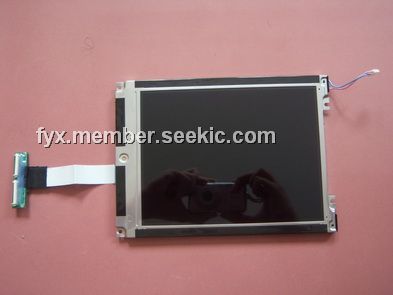

The LM8V302 is a Color STN-LCD Module.
Parametrics
LM8V302 specifications: (1)Display size 20 [7.7] cm; (2)Backlight type 1CCFT(E); (3)Dot format (H x V): 640 x RGB x 480 dot; (4)Duty ratio: 1/240; (5)Dot pitch (H x V): 0.082 x 0.246 mm; (6)Logic voltage: 3.3 V; (7)Active area (H x V): 157.4 x 118.0 mm; (8)Power consumption: 2290 mW; (9)Panel type: *1; (10)Outline dimensions (W x H x D): 197.0 x 142.5 x 8 mm; (11)Panel mode: Transmissive; (12)Weight: 240 g; (13)Contrast ratio 50 : 1; (14)Operating temperature: 0 to +50 ℃; (15)Response time: 350 ms; (16)Storage temperature: -25 to +60 ℃; (17)Brightness: 120 cd/m2.
Features
LM8V302 features: (1)20 cm [7.7"] VGA format; (2)Thin structure (8.0 mm) & lightweight (240 g); (3)Built-in CCFT backlight.

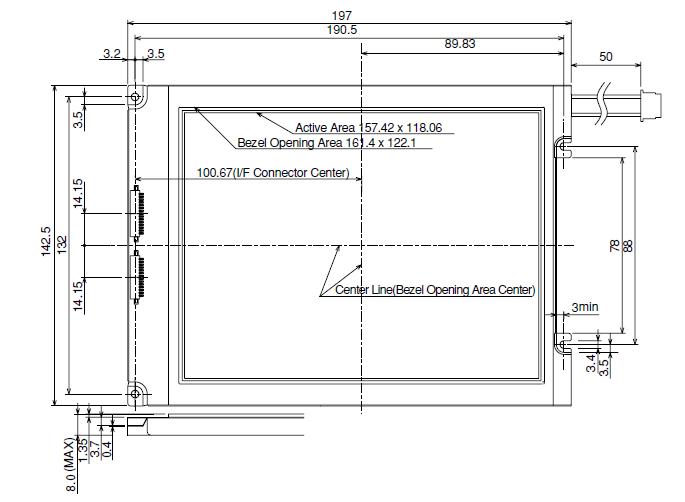

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM8V302 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LM8V302R |
Other |
|
Data Sheet |
Negotiable |
|
||||
